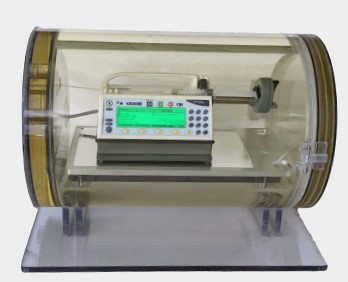

ClearView Infusion Pump Shield

Model Number:

PTI-CIPF


Clearview shields protects workers against gammas, betas, and neutrons during high-dose, high-risk jobs.  Lead glass infusion / injection shields offer minimal lead equivalency and lead shield obstruct the viewing ability of a nuclear medicine technician or radiopharmacists.  The ClearView Infusion Pump Shield is designed to reduce technologist exposure during the injection of radionuclides that require a very slow infusion protocol.  The ability to see the infusion process clearly allows hospital staff to be at a distance or view the process through a camera.

  • 1" Thick ClearView, 0.35" lead equivalency
  • Fits Medfusion, Graseby, Moog Pumps
  • Weight: 125 lbs
  • Footprint: 21" x 16"
  • Inner Diameter: 11"

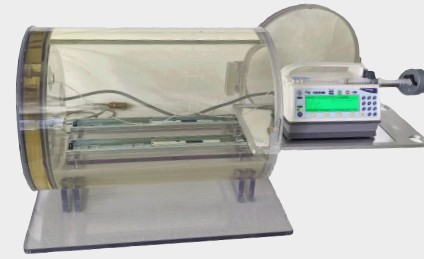

  • Length (tray in): 23.38"

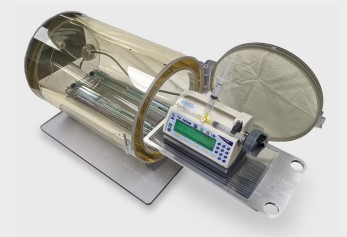

  • Length (tray out): 36"
  • 6mm acrylic housing
  • Blocks Beta emissions
  • Must be stored at minimum of 60° F
